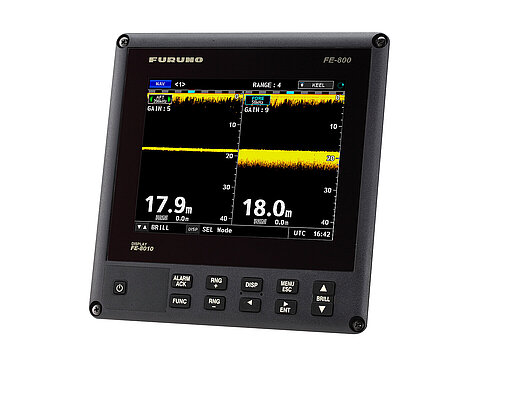

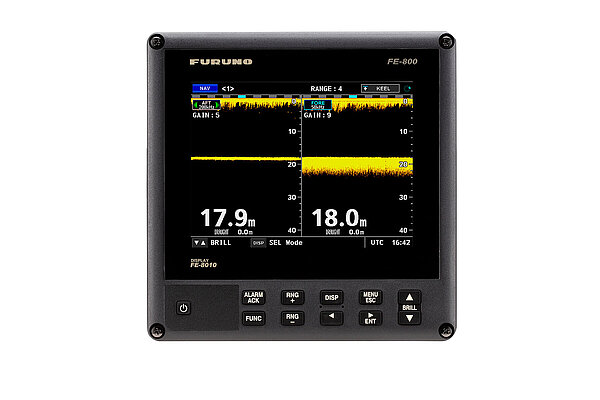

Furuno Echosounder FE-800

Wheelmark approved colour Navigation Echo Sounder
  • Dual frequency display (50/ 200kHz)
  • Bridge Alert Management (BAM) ready
  • Frequency: 50 and 200 kHz available
  • Depth data for the past 24 hours is storable in the internal memory

Details

Display the clearance below the ship

The FE800 is a result of Furuno's many decades of experience developing echo sounders, sonars, and underwater application equipment and systems. This echo sounder is a breakthrough over the conventional paper sounders; there are no consumable items. The purpose of the echo sounder is to provide safe navigation by detecting the clearance below the ship (particularly in shallow waters) as required on the SOLAS Convention ships by the new IMO standards. The basic system consists of a display unit and distribution box. The 8.4" high-brightness color LCD display offers an easy-to-read depth sounding in various modes, permitting optimum representation with respect to the environment.

Stay informed with visual and audible alerts

The FE800 generates alerts when the water depth below the transducer is shallower than the preset depth. When the seabed is lost due to the lowered power supply or out of range scale, an alert is generated. The receiver sensitivity is automatically controlled with the tracking depth; manual override is possible to improve the detection and to reduce the surface clutter.

Providing mission critical data at your fingertips

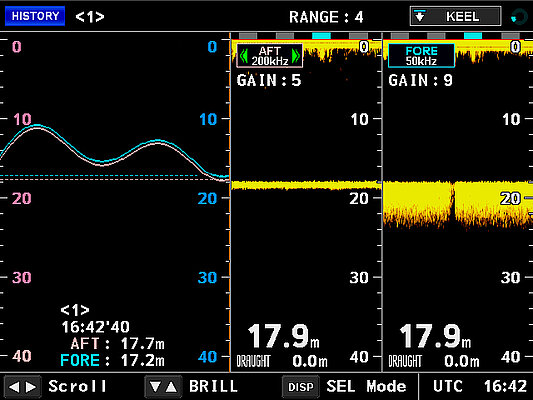

View your Own Ship Data (OS Data) when the FE800 is connected to an external GPS Navigator. Display a combination of Contour and Strata echo readings in preset intervals of 5 seconds, 1 minute or 2 minutes. Display the stored time, depth and own ship position. The logbook is capable of storing data for up to 720 log entries. Displays up to 100 alerts stored in history.

Technical informations:

Display Size: 8.4 inches
Display Type: Color LCD
Frequency: 50 and 200 kHz
Power Usage: 100-115-120-220-230 VAC
Power Output: 1 kW
Range: 800 m
