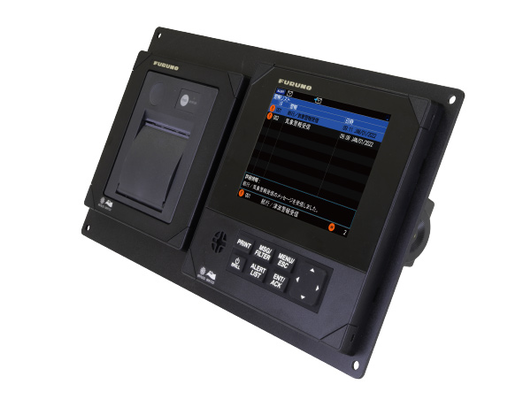

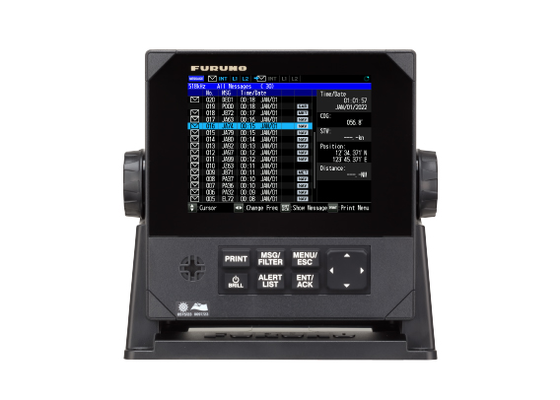

Furuno Navtex NX-900

Wheelmark approved Navtex Receiver
  • Fully IMO Resolution and IEC Standards compliant
  • Self-test function for maintenance and inspection
  • Improved visibility and operability
  • Easy installation

Details

Introduction

The Furuno NX-900 NAVTEX receiver automatically receives, displays, prints (via optional printer) and sends data to navigation equipment such as ECDIS, the maritime safety information (MSI) composed of Navigational warning, Meteorological warning, and Search and Rescue (SAR) information, etc., broadcast from coastal stations in the MF and HF bands.

Improved capabilities thanks to additional interfaces

Now Features 2 IN/OUT serial ports as well as a LAN port.

Prevention function for important messages

If a SAR message (Search and Rescue information) is received, regardless of the alarm setting, it will sound an alarm and immediately display the content after receiving it.

Improved visibility and operability thanks to a complete redesign of the UI

The adaption of a 5.7-inch LCD enhances visibility and operability with a wide viewing angle. The casing design has also been completely revamped, so that it blends in harmoniously with Furuno equipment.

Technical informations:

Power supply:12-24 VDC
Power consumption: 0.7-035A (main unit only) | 2.0-1.1A (with junction box and printer)
Receiving frequency: 518kHz, 490 kHz, 4209.5 kHz
Message capacity: 500 characters with 200 messages x 3 channels
Ports: 2x Serial IEC61162-1 Ed 5 | 1x Ethernet  1x RS-232C for printer | 1x closure contact
Printing width: 48mm
Number of characters: 32 characters/ line
Printing paper: Thermal paper
