Furuno Resistant GNSS FFGR-Series
Anti-jamming and spoofing back-up GNSS system
- Operates during ground-based jamming
- Indication of GNSS anomalies
- Ideal for noisy RF environments
- NMEA 0183 outputs for back-up GNSS system function
DETAILS
Stable navigation in unstable environments

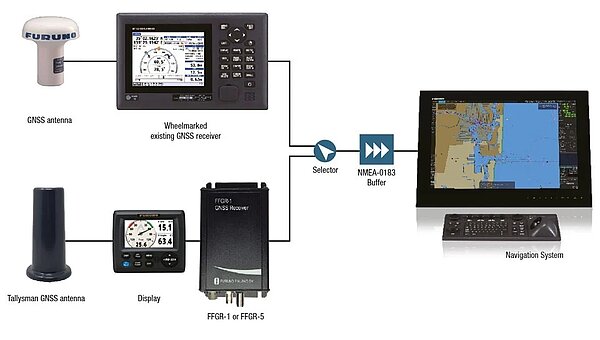

with great performance in jammed and spoofed environments. This antenna improves the resistance against all interferences, which exists in the GNSS frequency band, remarkably. This antenna is designed to dampen the interference and jamming signals, that are being broadcasted from ground-based transmitters. Depending on the Flag state, this system can be used as a backup-system for wheelmarked marine GNSS receivers on SOLAS vessels. In combination with Furuno´s FFSP-100 jamming and spoofing monitor system, you will be offered quick warning of increasing jamming or spoofing activities, by switching over the GNSS distribution source for your nav equipment to your FFGR-Series system safe navigation will be secured rapidly.
Technical informations:
Power Supply: 9-36VDC / 2W
Size: Receiver 159x74x48 [mm] | Antenna unit 90x180 [mm]
weight: 655g
GNSS horizontal pos. accuracy: 1,5m
Sensitivity (tracking): -167dBm
Sensitivity (nav): -160dBm
Cold start time: 24s
hot start: 2s
Outputs: 2x NMEA 0183 10Hz | 1x 1PPS

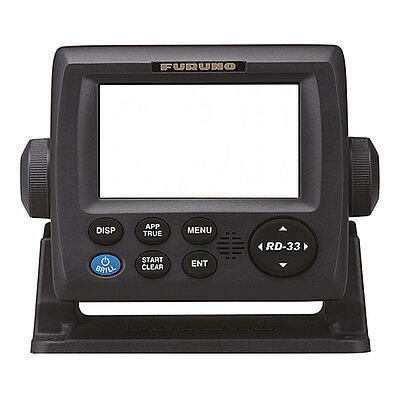

recommended Display unit: Furuno RD-33
