Furuno Speedlog (SDME) GS-100
Wheelmark approved Satellite Speed Log with 5.7" display
- transverse speed at bow and stern position, as well as longitudinal speed
- delivers roll, pitch and angular information for navigation equipment
- Fully complies with IEC 61023 and THD standard ISO 22090-3
- compact antenna unit ease of installation
Details
Provides speed accuracy of +/- 0.02 kn
The measurement capability at dead slow speed is vital for precise docking of large ships.
The GS-100 offers speed accuracy of +/- 0.02 kn, which is of great help during berthing operations.
Also, an optional 8.4" color LCD for a wing workstation installation gives high.legibility, real time information
in both graphics and alphanumerics.
Offers transverse speed at bow and stern position, as well as longitudinal speed.
Provides transverse speed at any position of the ship utilizing the built-in satellite compass.
Delivers roll, pitch and angular information for navigation equipment such as Radar, ECDIS and AIS.
Accurate information of ship's attitude contributes to safe and efficient navigation.
Fully complies with SDME (Speed and Distance Measuring Device) standard (IEC 61023) and THD
(Transmitting Heading Device) standard (ISO 22090-3)

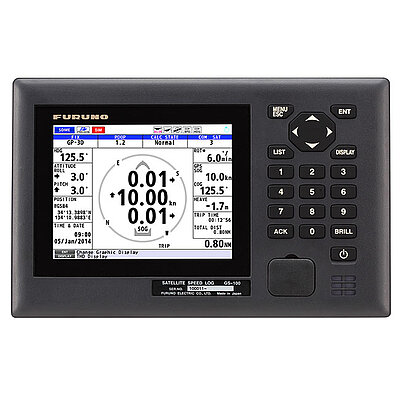

5.7" color LCD
Compact antenna unit facilitates ease of installation.
Simplified menu operation
The operator can navigate through the menu by pressing the cursor or pressing the numeric key
associated with the menu items.
Technical informations:
Display Size: 5.7"
Display Type: color LCD
accuracy: 0.02 kn
Power Supply: 24 VDC
