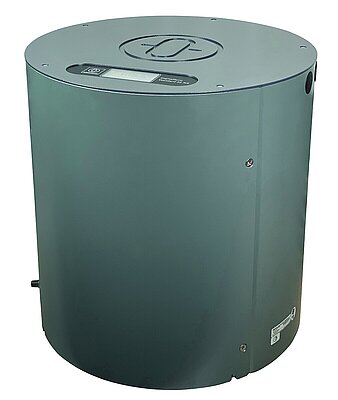

Raytheon Anschütz Gyro Compass Std 22 NX
Wheelmark approved Gyrocompass
- Easy to integrate, even into existing systems
- Long-term stability of heading information
- Long maintenance intervals
- Long lifetime of gyrosphere (in average five years)
Details
EASE OF INSTALLATION AND CONFIGURATION
The installation of Standard 22 NX into a heading management system is realised via a redundant CAN bus. CAN bus has the advantage that it operates in real time, can be up to 400m in length and only needs 6 wires. The configuration of Standard 22 NX is completed via a webserver. No dedicated tools are required except for a notebook and a browser. Configurations can be up- and downloaded – so the required time for configuration can go down to minutes.
ACCURACY AND RELIABILITY
Standard 22 NX uses the unique sensor technology from Raytheon Anschütz. The design ensures that environmental influences, such as vibrations and shocks, are kept away from the sensor and do not influence heading accuracy. Wear and tear is eliminated by use of electronic data transmission technology that completely replaces the use of slip rings.
TECHNOLOGY FOR THE NEXT DECADE
Standard 22 NX provides all interfaces that you need today and in future. It provides heading and rate-of-turn as serial data. Rate-of-turn indicators can be connected directly to Standard 22 NX. All data is also available on two Ethernet interfaces. The com- pliance to the Ethernet standard IEC61162-450 ensures that the next generation Radar, ECDIS, etc. can be connected. Standard 22 NX is also compliant to Bridge Alert Management (BAM). A Central Alert Management (CAM) display can be connected via Ethernet or serial data.
Technical informations:
Power Supply: 230V AC
