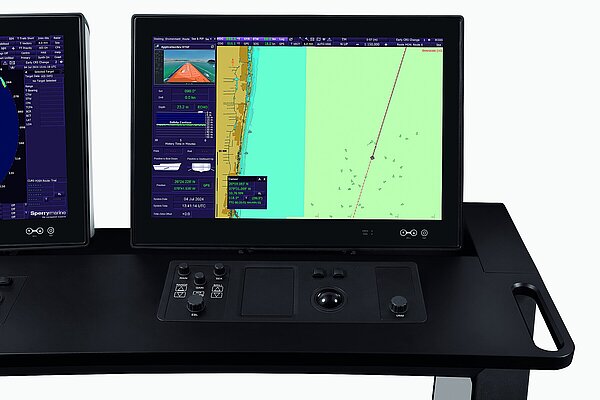

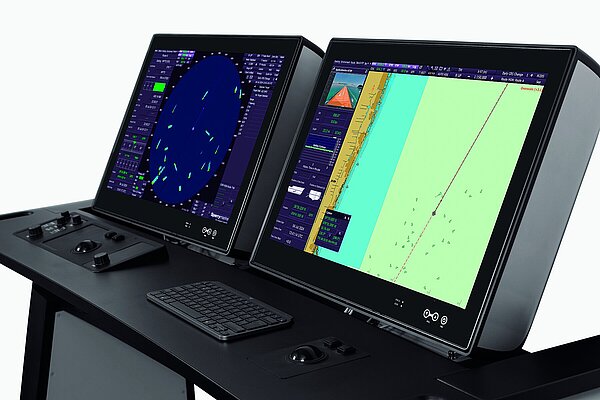

Sperry Marine ECDIS VisionMaster Net
Wheelmark approved ECDIS
- Display charts from key chart suppliers such as Admiralty AVCS, C-Map, GNS, ChartWorld
- Global 24/365 service and support at every major seaport due to service network

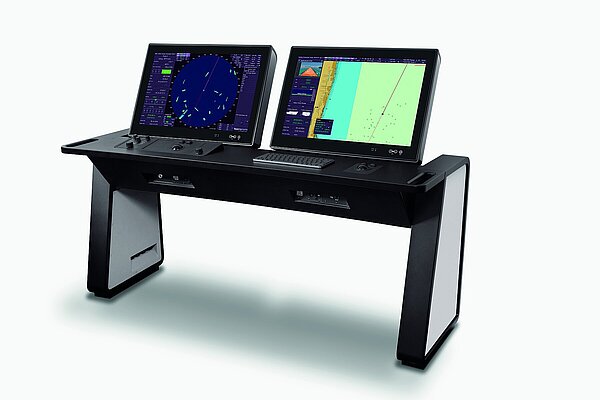

- Deckstand, Desktop, Kit Version or TT 250 Hardware allowing flexible installation
- Panel 19",24" or 26”
Details
Industry-leading route planning and monitoring
Demands on mariners are increasing, with reduced bridge crew handling more tasks and more systems. Work overload leads to stress, fatigue and ultimately, more accidents. Chart carriage requirements must be met for vessels to leave port. Best practice route planning and monitoring must therefore be quick and easy, with a clear display of up-to-date, official chart information – to keep your vessels safely on schedule while reducing fuel consumption and emissions. VisionMaster ECDIS is an industry leading route planning and monitoring solution that’s fast, easy and accurate. Its clear, intuitive interface optimises situational awareness and reduces risk of accidents. Routes can be flexibly created, with the display of charts and navigational data customised to suit vessel or task requirements, as well as individual preferences. VisionMaster ECDIS also enables more fuel-efficient, sustainable operations through integrated speed planning, ETA calculators and other features. It’s simple for any vessel to install and use, whether a new build or retrofit, operating in the open seas or confined channels. VisionMaster ECDIS is fully compliant and offers enhanced functionality that exceeds IMO and IHO regulations. And as requirements evolve, it can be easily upgraded to add radar overlay, or to become a TotalWatch multifunction workstation.
Increase reliability
One full system includes 2 separate, redundant workstations to meet IMO ECDIS back-up requirements, with automatic failover for continuous operation.
Stay compliant
The VisionMaster Net ECDIS is Type approved to the TMO ECDIS performance standard and meets or exceeds IMO, IEC and IHO regulations for paperless navigation and electronic chart display. The system provides a comprehensive Chart Status Report in support of compliance with he chart carriage requirements.
Improved flexibility
Sperry Marine VisionMaster Net ECDIS supports all major nautical chart formats (IHO S-57/S-63 including AVCS and AIO, C-Map CAES and Professional+ in CM93v3 format, ARCS, VPF and ChartWorld).
Reduce through-life costs
Easy to install as a new-build or fully compatible retrofit; and simple to integrate with other navigation products, including compass, speed logs, GNSS, AIS, echo sounders, VDR and BNWAS. Conning Information Display or Central Alarm Manager modes to reduce need for additional workstations
Technical Informations:
Supported Formats: IHO S-57/ S63 including AVCS and AIO, C-Map CAE and Professional+, ARCS, VPF, ChartWorld
Scale: 1:800000 to 1:5000
Stabilised representation: Nort-up, Course-up
Display Size: 19, 23, 26 or 27 inches in size
Options: Deckstand, Desktop, or Kit Version
