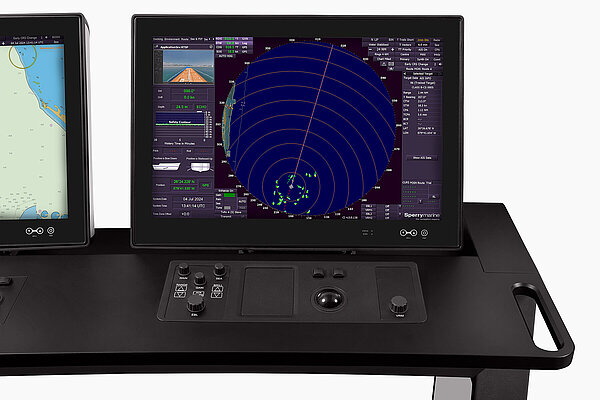

Sperry Marine Radar VisionMaster Net
Wheelmark approved ARPA Radar
- compact panel PC design
- Third-party equipment can easily be integrated
- Failsafe due to redundant Ethernet ring construction
- Supports new central alert management human machine interface
Details

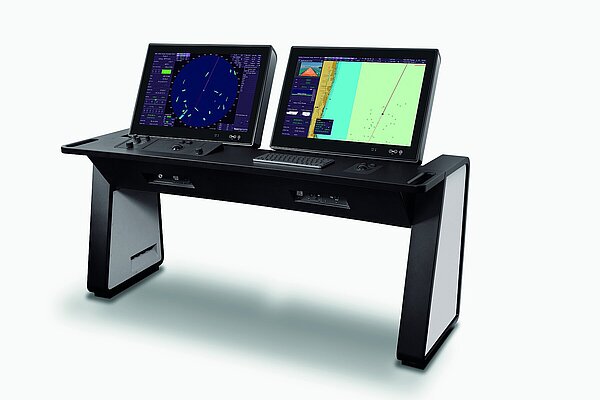

Networked Marine Radar System for Integrated Bridge Solutions
The VisionMaster Net Radar from Sperry Marine is a state-of-the-art, networked radar system designed to deliver maximum situational awareness, operational efficiency, and system resilience on modern vessel bridges. As part of the VisionMaster Net architecture, it seamlessly integrates into a fully connected navigation environment, supporting scalable bridge configurations from standalone radar to complete integrated bridge systems. Combining advanced radar processing with a flexible Ethernet-based network, the system ensures reliable performance, simplified installation, and future-ready scalability.
A full offering to suit different operational needs
Sperry Marine´s latest Radar features ARPA function and is Sperry Marine´s state of the art radar solution, which has established an unmatched reputation in reliability and performance worldwide.
Easy to integrate
The new Sperry Marine VisionMaster Net Radar has a modular network design over an ethernet ring. Third-Party equipment can easily be inetegratedinto any configuration to create a networked bridge solution for any vessel.
Increased resilience
The Ring topology offers a high level of redundancy in comparison to conventional point-to-point connections.
Improved operational efficiency
Sperry Marine VisionMaster Net provides the foundation for “big data” on the vessel. With SperrySphere, it enables smart maintenance of onboard systems with a focus on cyber security.
Improve flexibility
This Radar is scalable to all type of vessels and offers a digital platform for all navigational applications.
Antenna and Turning unit
The specific design has been especially influenced to minimize load on the motor in high wind, for thermal management and also reduce ice accumulation. The masthead top units, including transceivers, provide highly reliable data transmission to the VisionMaster Net display through a CAT6a Ethernet cable.
Technical informations:
Antenna type: Slotted waveguide array
Aperture Length (S-Band): 9ft (not approved) | 12ft
Aperture Length (X-Band): 4ft | 6ft | 8ft
Polarization: Horizontal
Nominal Rotation Rate (S-Band): 25 rpm
Nominal Rotation rate (X-Band): 28 rpm
Transceiver Frequency: S-Band: 3050MHz | X-Band: 9010MHz
Transceiver Peak Power: S-Band: 30kW | X-Band: 10kW or 25kW
Input Power Antenna: S-Band: depends on antenna selection | X-Band 92-276VAC 47/64Hz
Screen Size CAT 1: 26” Standard | 26” SlimLine (1920x1200 both)
Screen Size ECAT 2: 24” (1920x1080)| 19” (1280x1024)
